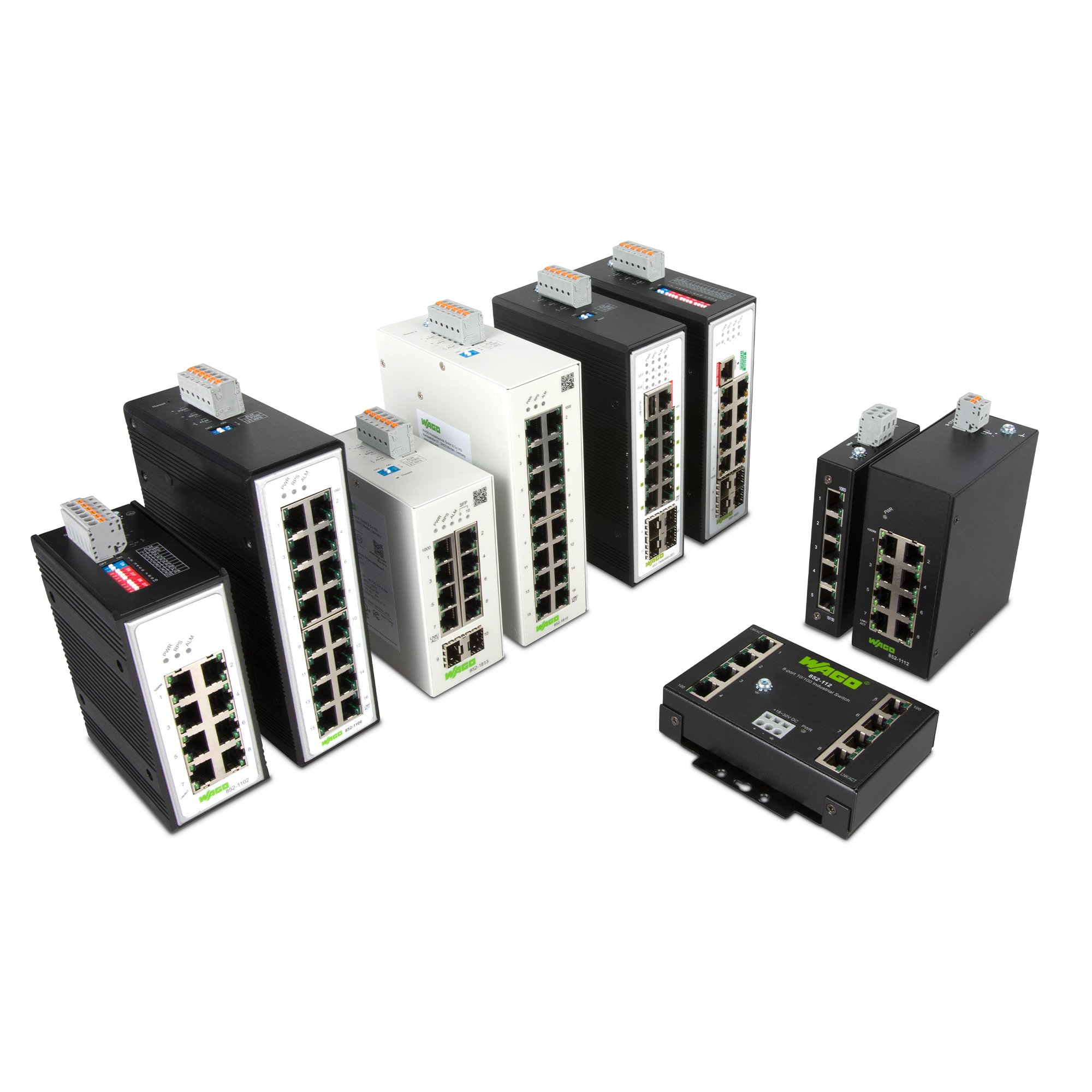

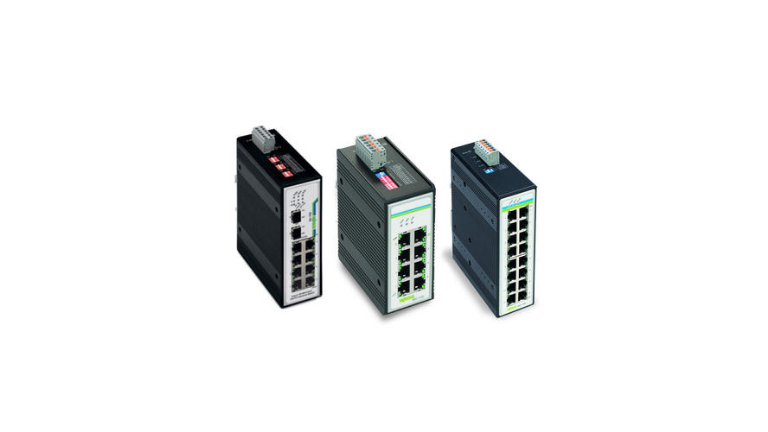

INDUSTRIAL SWITCHES

WAGO’s range of switches ensures the scalability of your ETHERNET network infrastructure, while providing outstanding electrical and mechanical characteristics. These robust switches are designed for industrial use and are fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab.

Industrial Switches for Your Network Solution

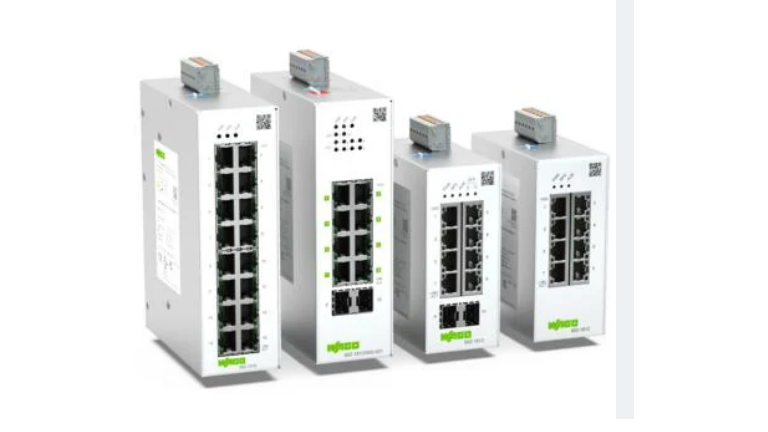

Lean Managed Switches

The Benefits for You:
  • ▪Economical configurable switch variant
  • ▪Easy network troubleshooting with minimal IT expertise
  • ▪Intuitive use – during configuration and throughout the lifecycle

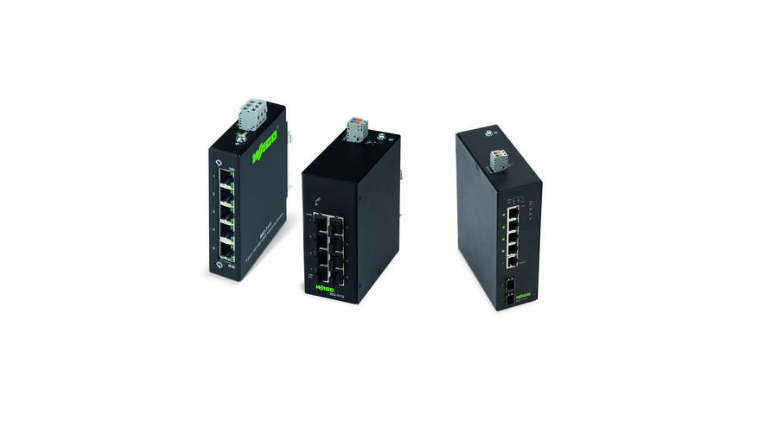

Industrial Eco Switches

Economical and Compact
  • ▪For small- to medium-sized data networks
  • ▪Rugged design - DIN-rail adapter and metal housing - Surrounding air temperature (operation): −40 … +70 °C
  • ▪Autonegotiation and autocrossing for easy network creation and extension
  • ▪Gigabit versions for high data throughput
  • ▪Transmission of power and data via ETHERNET connection with Power over Ethernet (PoE+)

Industrial Switches

Versatile
  • ▪Redundant power supply
  • ▪Alarm contact configuration via DIP switches
  • ▪Use of SFP modules
  • ▪Rugged design- DIN-rail adapter and metal housing - Surrounding air temperature (operation): −40 … +70 °C
  • ▪Alarm contact: Primary and secondary power supply monitoring
  • ▪Monitoring of ETHERNET ports
  • ▪Signaling via PLC or remote I/Os

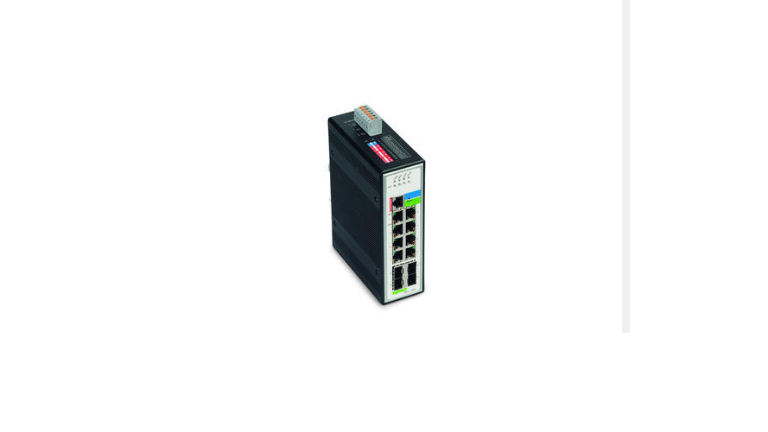

Industrial Managed Switches

Powerful and Secure
  • ▪Redundant power supply
  • ▪Use of SFP modules
  • ▪RS-232 interface for command-based configuration
  • ▪Integrated Web-Based Management for configuration or diagnostics
  • ▪Status LEDs
  • ▪Alarm contact
    - Jet ring diagnostics
    - ERPS ring diagnostics
    - Primary and secondary power supply monitoring
    - Monitoring of ETHERNET ports
    - Signaling via PLC or remote I/Os
  • ▪Power over Ethernet (PoE+)
  • ▪Configurable functions
    - Security
    - Availability
    - Performance
    - Data transmission

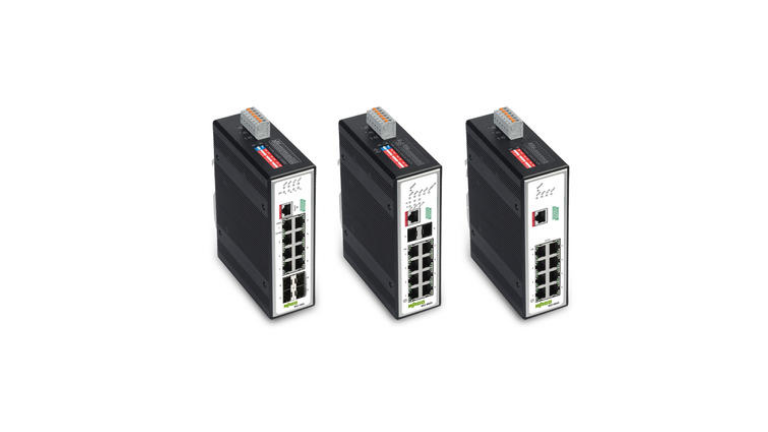

PROFINET Managed Switches

Economical and Compact
  • ▪PROFINET CC-B certified: Ideal for industrial automation applications
  • ▪Media redundancy protocol: Freely configurable as a client or manager
  • ▪PROFINET diagnostics from the application: Cyclically readable process image
  • ▪Flexible port mirroring configuration: Via GSDML or Web-Based Management
  • ▪Potential-free connection via SFP modules: Cable lengths up to 80 km possible

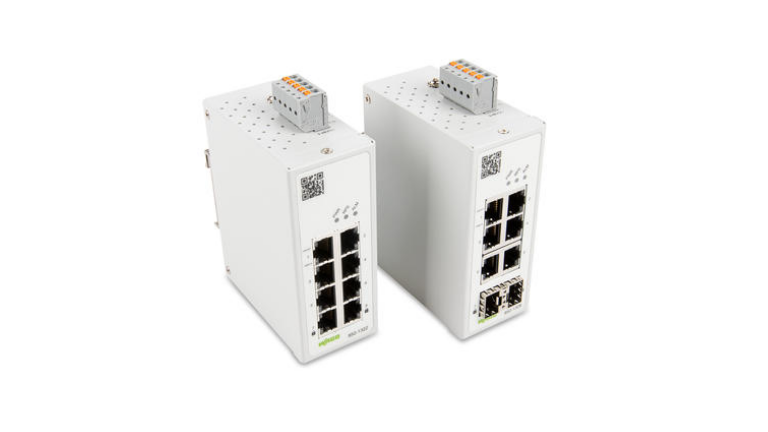

Industrial Managed Switch

With integrated encryption function
  • ▪128-bit encryption (GCM-AES) of the data packets on layer 2 (MAC layer) on two ports
  • ▪Port-specific authentication per IEEE802.1X
  • ▪Secure switch configuration via Web browser (https) or SNMPv3

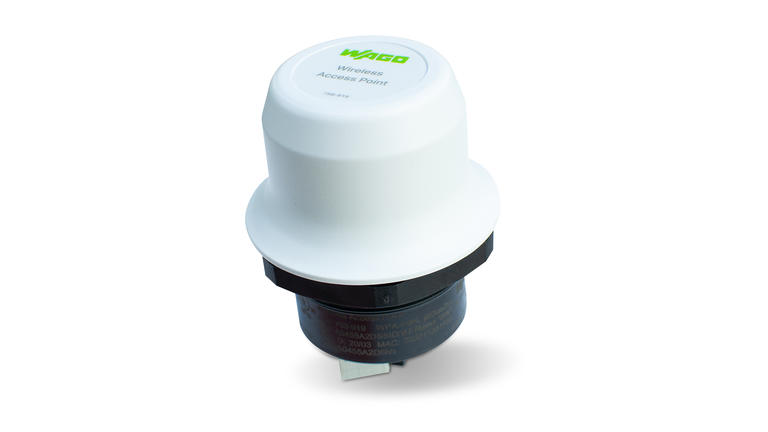

Communicate with Machines Wirelessly The Wireless Access Point supports WLAN and Bluetooth®.

Wireless communication is a highly attractive option within industrial environments for quickly accessing machines or systems without installing a cable. To easily establish such a connection, WAGO now offers the new Wireless Access Point, which is installed directly on the outer surface of a control cabinet. It allows wireless transmission via WLAN (IEEE802.11a/b/g/d/n/r), Bluetooth® or Bluetooth® Low Energy. For example, this integration allows access to the machine controller with a tablet or smartphone via the PROFINET, Modbus/TCP or EtherNet/IP ETHERNET protocols.

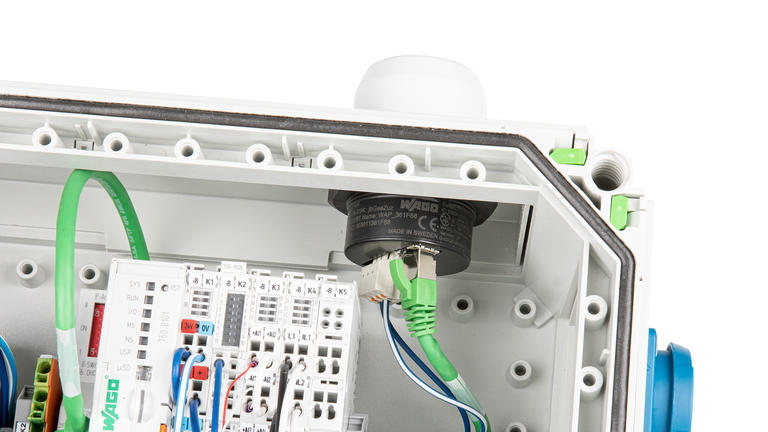

Installing the compact Wireless Access Point is incredibly easy. A 50 mm diameter hole must be punched in the housing. The device is inserted through the hole and then secured from the inside with a suitable M50 nut. After that, all that needs to be connected is the data line through the RJ45 connector and, if necessary, the power supply. Alternatively, power supply via PoE is possible. The housing achieves the high IP67 protection rating, enabling use in harsh industrial environments.

The Benefits for You:
  • ▪Wireless machine communication
  • ▪Access to the controller with a tablet or smartphone
  • ▪Complete package – simply install and start immediately
