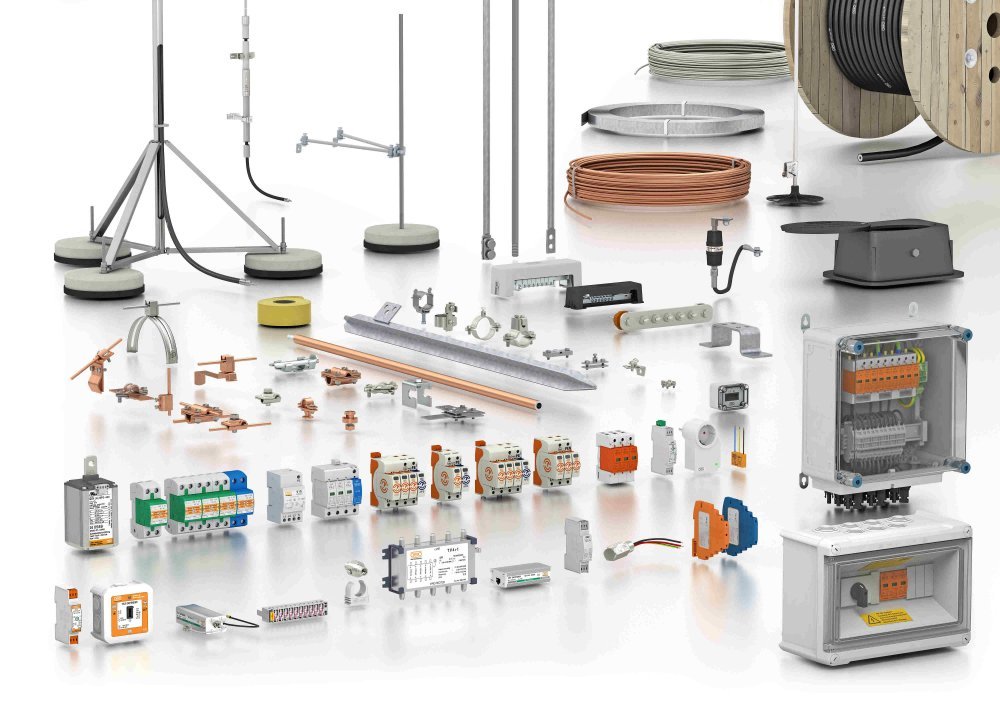

Transient & Lightning Protection Systems
We offer complete products & solution to protect your infrastructure from Extra High Voltage Lightning surges which occurs due to Lightning stroke.
Broadly our solution consists of Surge Arrestors, Earthing Systems, SPD(Surge Protection Devices).
Lightning Protection
- Air-termination and down-conductor system
- OBO isCon system and insulated lightning protection.
- Equipotential Bonding Systems
- Interception & arrestor system
- Measuring & testing system
- Earthing System
- Surge Protection Energy Technology, arrestor, type 1
- Surge Protection Energy Technology, arrestor, type 1+2
- Surge Protection Energy Technology, arrestor, type 2
- Surge Protection Device for photovoltaics
- Surge Protection Data and Information Technology

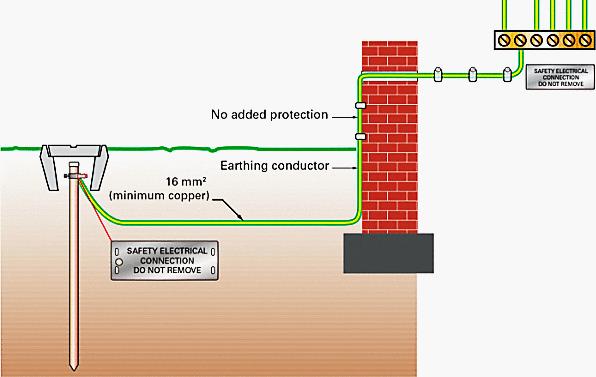

Earthing and Equipotential Bonding Systems
- Cable material in flat & round.
- Connection terminal.
- Cross Connection.
- Earth entry rods.
- Deep-Ring-Foundation earther.
- Corrossion protection.
- Solid copper coated / copper bonded steel earth rod
- Earth conductivity enhancing mineral compound
- Under floor earth inspection pit
- Copper bonded round conductor

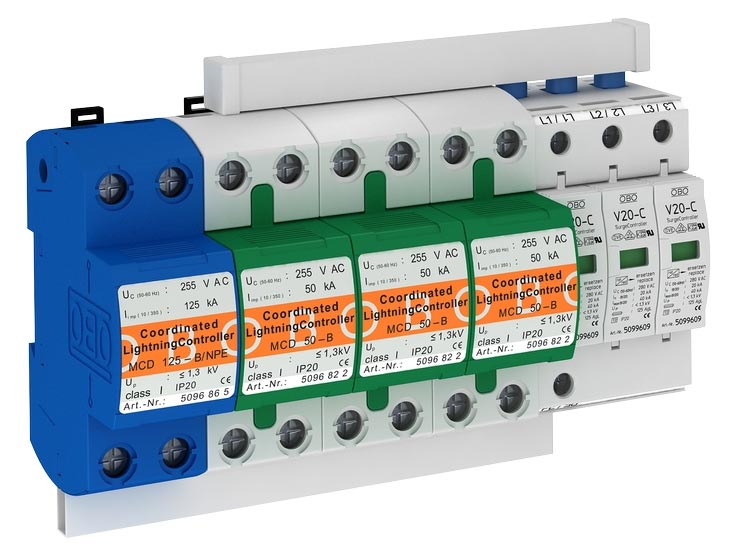

Surge Protection Device (SPD)
- Lightning and combination protective device.
- Surge protective devices for energy and Data.
- Complete system solutions.
- Preinstalled in housing.
- Combi-and surge arresters for photovoltaic.
- Surge protection device (SPD), energy technology.
- Surge protection device (SPD), photovoltaics.
- Surge protection device (SPD) for data and information technology.
- Protection and spark gaps
- Measuring and test systems
- Equipotential bonding systems
- Earthing systems
Application
Photovoltaic SPD's solution for high voltage protection SPD's are offered with life indicator which allows convenient wiring in a enclosure. SPD has continuous voltage of 1000V DC.
Round Conductor - Aluminum
- Make : OBO Bettermann
- Size : 8mm and 10mm

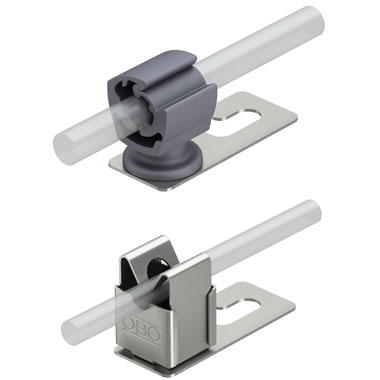

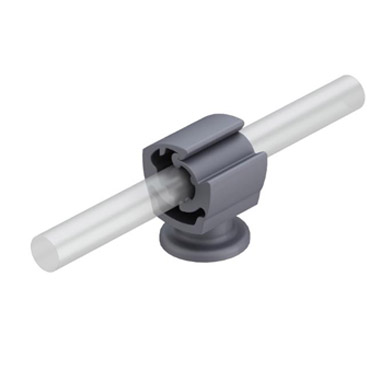

Conductor Holder - Parapet
- Make : OBO Bettermann
- With female thread M8 or through hole Ø 7 mm.
- Weather and temperature-resistant from -35 °C to +90 °C

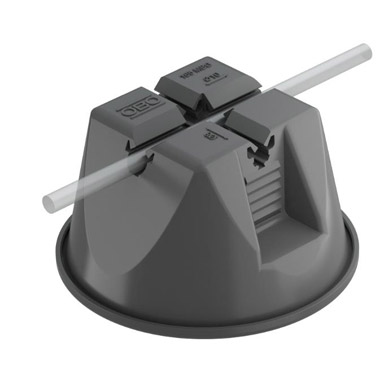

Conductor Holder -Terrace
- Make : OBO Bettermann
- Closed form with base.
- With double conductor holder ( 8mm and 10mm).
- Filling weight 1 kg (frost-resistant concrete).
- Sleeve made of polyethylene, black, bottom polypropylene, black
- Make : OBO Bettermann
- Bottom section stainless steel (V2A)
- Bottom section with Ø 8.5 mm slot
- Conductor holder of polyamide

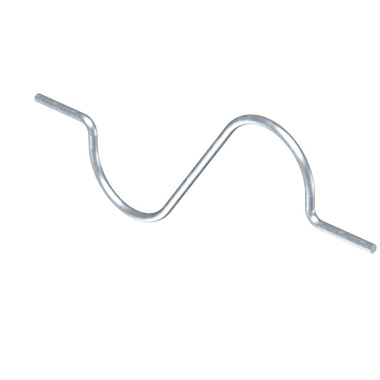

- Make : OBO Bettermann
- For equalising temperature-related length changes
- Necessary on conductor lengths over 20 m
- From round conductor Rd 8-Al

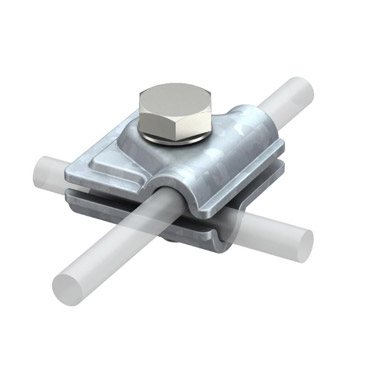

- Make : OBO Bettermann
- Application : For T, cross and parallel connectors.

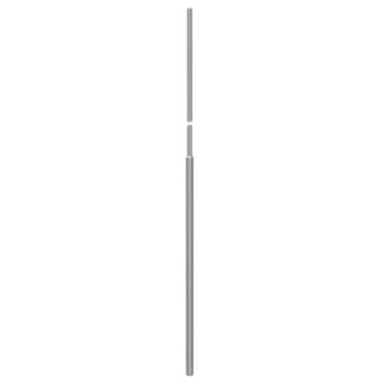

Tapered pipe interception rod
- Make : OBO Bettermann
- Application : For T, cross and parallel connectors.
- Diameter : 10mm to 16mm

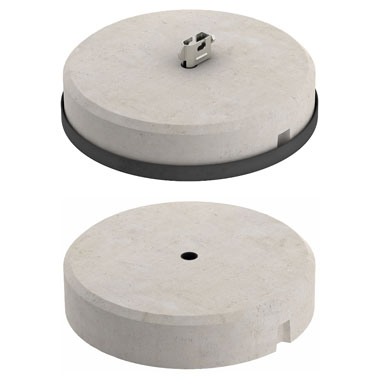

Concrete Block for Fang fix – System
- Make : OBO Bettermann
- 16 kg stone of Ø 365 mm, high level of stability
- The Fang fix stone can be stacked
- Easy mounting of air-termination rod
Terminal for Fang fix system
- Make : OBO Bettermann
- Tested with H (100 kA)
- FangFix terminal, VA for RD 8 mm
- Make : OBO Bettermann
- Size: 1 Meter

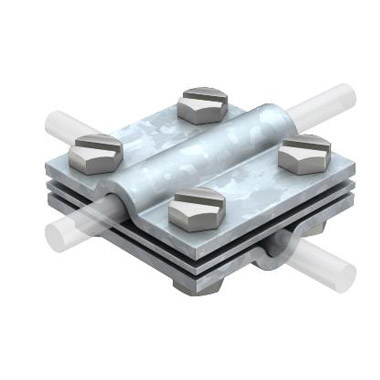

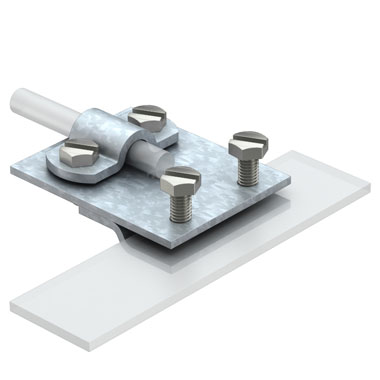

Cross connector with plate for Al Conductor
- Make : OBO Bettermann
- Galvanization : Hot dip galvanization
- With adapter plate
- Make : OBO Bettermann
- Galvanization : Hot dip galvanization
- Thickness : 10 mm/16mm

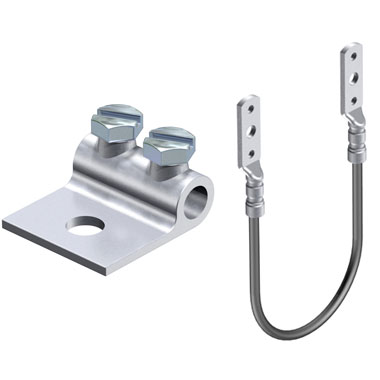

Bridging Cable With clamping shoe
- Make : OBO Bettermann
- Size : 200mm to 400mm
- Material : Flexible copper cable 16 mm²
- Coating: black, chlorinated India rubber mixture
- Make : OBO Bettermann
- Thickness : 5mm
- Galvanization : Hot Dip galvanization

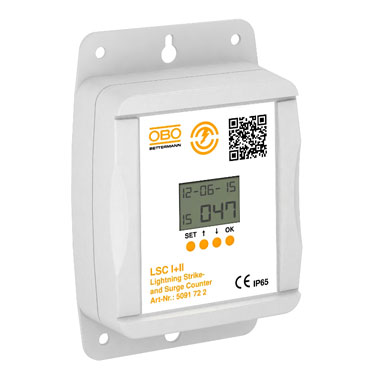

- Make : OBO Bettermann
- Measuring Range : 1KA to 100KA
- Saving and display of time and date
- Long lifespan of the internal lithium batteries
- Direct mounting on the conductor
- Application : Usable both inside and outside

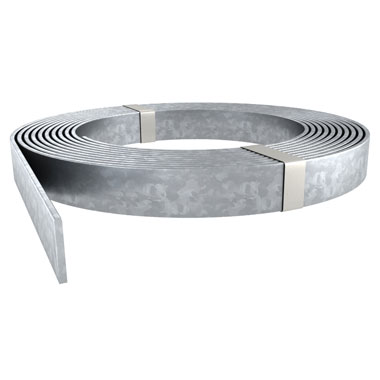

Galvanised steel flat conductor
- Make : OBO Bettermann
- Type : 30mm X 3mm and 40mm X 5mm
- Material : Zinc Coating
- Galvanization : Hot Dip Galvanization
- Application : Ring Equipotential Bonding

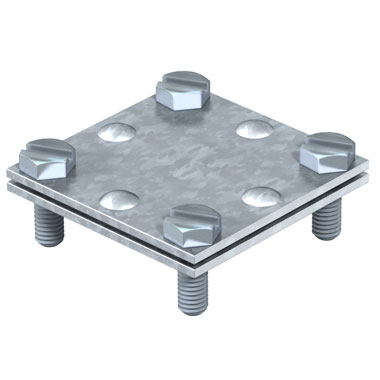

Cross Connector for flat conductor
- Make : OBO Bettermann
- Size : FL 30mm and 40mm
- Galvanization : Hot Dip Galvanization
- Mounted with 4 hexagonal bolts M6 x 20
- Make : OBO Bettermann
- Size : FL 30mm and FL 40mm
- Galvanization : Electrogalvanized

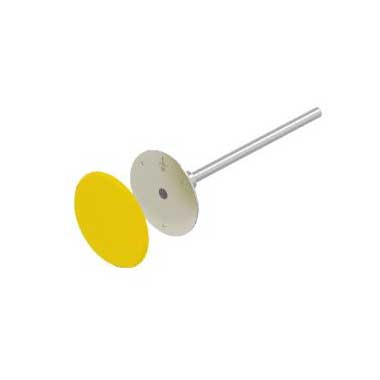

- Make : OBO Bettermann
- Contact plate : Ø 79 mm, made of rustproof stainless steel (V4A)
- Clamping Bolt : Ø 10 mm, rustproof (V2A)
- Application : Connection to earthing systems, conductors and reinforcement
- Make : OBO Bettermann
- Installed with screws M10 x 40
- Galvanization : Hot Dip Galvanization

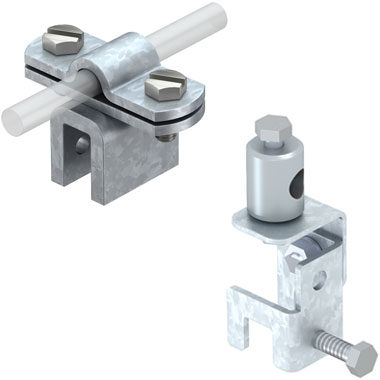

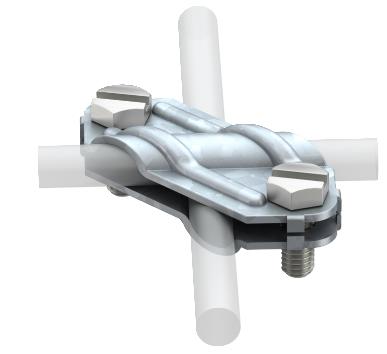

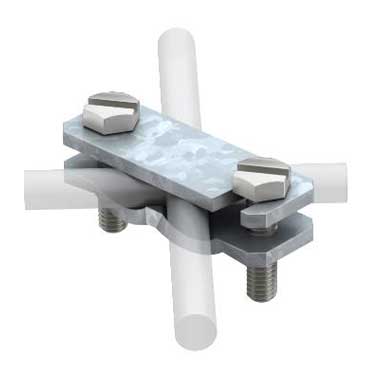

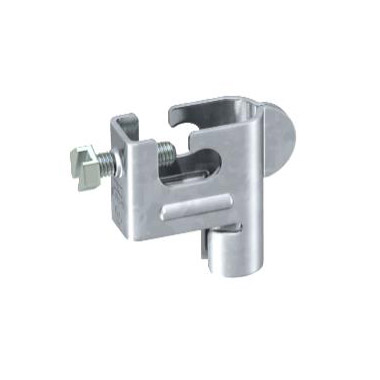

Cross Connector for reinforcement
- Make : OBO Bettermann
- Mounted with 2 hexagonal bolts M8 x 20 (F)
- Galvanization : Hot Dip Galvanization

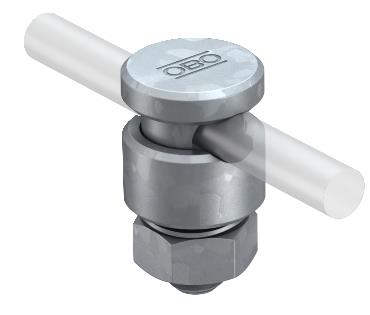

Connector Rd 8-10mm with pressure through
- Make : OBO Bettermann
- Including pre-mounted pressure sump
- Galvanization : Hot Dip Galvanization

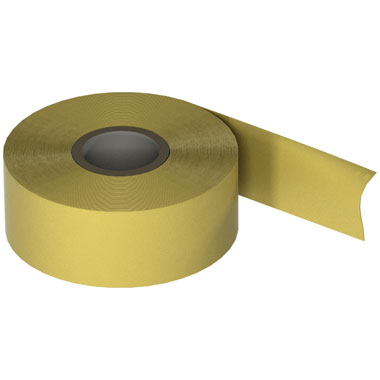

Plastic Corrosion protection Strip
- Make : OBO Bettermann
- Thickness : 1.1mm
- Length : 10mm
- Width : 50mm or 100mm
- Material : petrolatum-coated chemical fibre fabric

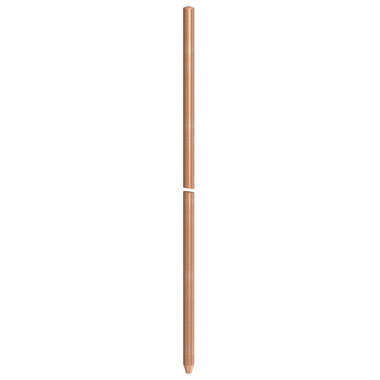

- Make : OBO Bettermann
- Material : Copper Bonded low carbon steel electrode
- Copper coating : 250micron
- Length : 2000mm and 3000mm (Standard)
- Diameter : 14.2mm, 17.2mm, 20mm and 25mm

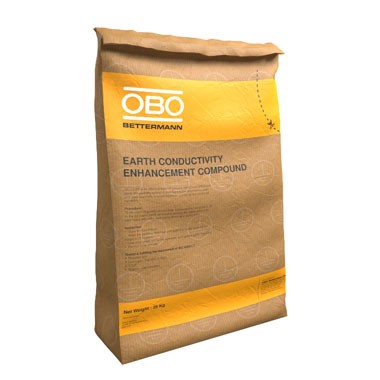

Earth Enhancing Mineral Compound
- Make : OBO Bettermann
- Properties : Highly conductive earth enhancing mineral Compound in all weather conditions.
- Available in (Kg) : 25kg
- Make : OBO Bettermann
- Material : Stainless Steel
- Diameter : 14.2mm, 17.2mm, 20mm and 25mm

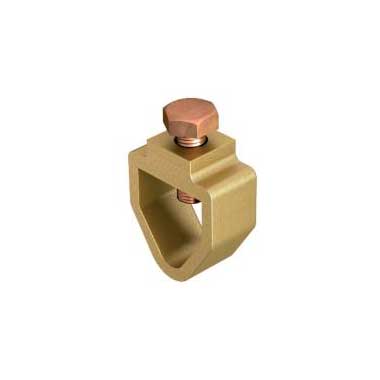

- Make : OBO Bettermann
- Material : Copper Alloy
- Diameter : 14.2mm, 17mm

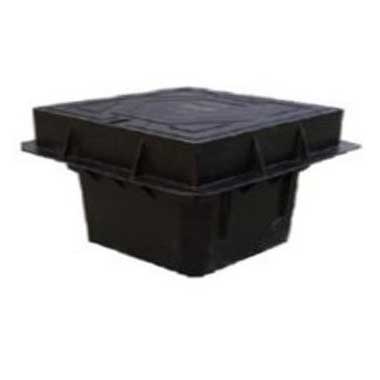

Under Floor Erath Inspection Pit
- Make : OBO Bettermann
- Material : Polythylene (Hard drawn plastic)
- Properties : Chemical resistant, lockable Lid
- Load Capacity : 5000kg (49kN)
- Make : OBO Bettermann
- Material : Copper Bonded low carbon steel electrode with connector and 3Kg earth enhancing mineral compound
- Copper coating : 100micron
- Lenght : 1250mm
- Diameter : 14.2mm

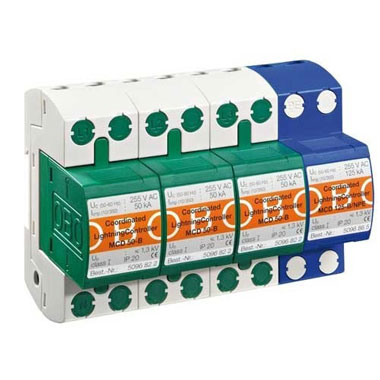

- Make : OBO Bettermann
- Impulse discharge current (10/350) kA : 125 kA
- Response time ns : <100
- Nominal voltage : 230 V
- Temperature range °C : -40 to +85
- Protection rating : IP 20

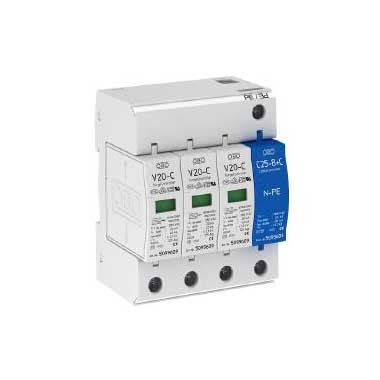

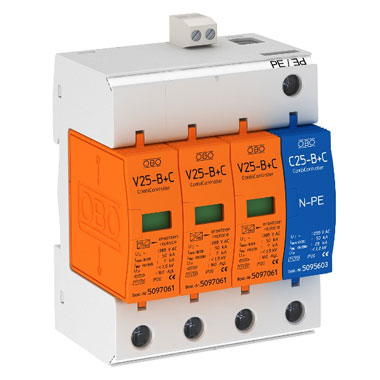

- Make : OBO Bettermann
- Nominal voltage : 230 V
- Maximum discharge curren : 40kA
- Temperature range°C : -40 to +85
- Response time : < 25 ns

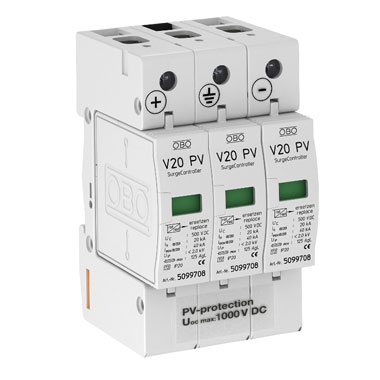

SPD – Type 2- Photovoltaic Device
- Make : OBO Bettermann
- Nominal voltage : 1000 V DC
- Maximum discharge current : 40kA
- Temperature range°C : -40 to +85
- Response time : < 25 ns
- Make : OBO Bettermann
- Nominal voltage : 230 V
- Response time : < 25 ns
- Temperature range°C : -40 to +85
- Total discharge current : 25 kA

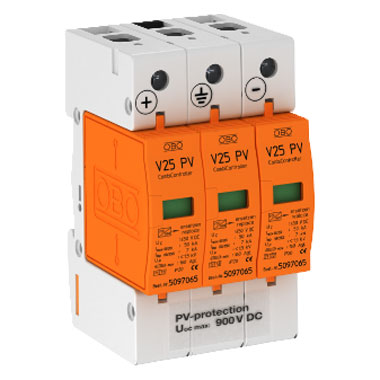

SPD – Type 1+2- Photovoltaic Device
- Make : OBO Bettermann
- Nominal voltage : 900 V DC
- Response time : < 25 ns
- Temperature range°C : -40 to +85
- Total discharge current : 50 kA
